标题: 单片机LCD1602+矩阵+计算器程序(有详细代码注释)
作者: 燦洋   时间: 2019-6-11 15:41
标题: 单片机LCD1602+矩阵+计算器程序(有详细代码注释)
做了一个简单的计算器。
利用4X4矩阵键盘和1602设计一个计算器
要求：可以实现至少三位数以内之的 加、减、乘、除
（小数、负数可以不考虑）
二、1602显示部分：

第一行：显示键盘输入的数字和运算符号
第二行：显示 “=”+“计算结果”

在输入数据进行计算时，如果有输入错误情况可以按“清除”键，把输错的数清掉，之后可以继续输入正确的数进行计算。

单片机源程序如下:
  1. #include< reg52.h>
  2. #include< stdlib.h>
  3. #include "keyport.h"
  4. #include "delay.h"
  5. #include< math.h>
  6. #include "1602.h"

  8. float code dofly_code[]={'0','1','2','3','4','5','6','7','8','9','-','*','C','=','+','/'};//转换成液晶显示的字符
  9. void main()
  10. {
  11.        unsigned char key,i,j,k,key_flag,n;
  12.        int sum_1,sum_2,sum,sums;
  13.        bit aa = 0;
  14.        LCD_Init();         //初始化液晶
  15.        DelayMs(20);       //延时有助于稳定
  16.        LCD_Clear();       //清屏
  17.
  18.        while(1)
  19.        {
  20.            key = keynum();
  21.              if(key!=0xff)
  22.                  {

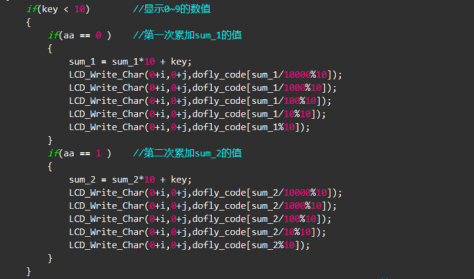

  23.                        if(key< 10)           //显示0~9的数值
  24.                        {
  25.                            if(aa == 0 )       //第一次累加sum_1的值
  26.                            {
  27.                                    sum_1 = sum_1*10 + key;
  28.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_1/10000%10]);
  29.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_1/1000%10]);
  30.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_1/100%10]);
  31.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_1/10%10]);
  32.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_1%10]);
  33.                            }
  34.                            if(aa == 1 )       //第二次累加sum_2的值
  35.                            {
  36.                                  sum_2 = sum_2*10 + key;
  37.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_2/10000%10]);
  38.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_2/1000%10]);
  39.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_2/100%10]);
  40.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_2/10%10]);
  41.                                  LCD_Write_Char(0+i,0+j,dofly_code[sum_2%10]);
  42.                            }
  43.                        }
  44.                        else if(key == 10 || key == 14 || key == 11 || key == 15)             //第二个数的累加，显示运算符号
  45.                        {
  46.                            key_flag = key;                 //记录+-*/
  47.                            aa = 1;                           //开始第二个数累加
  48.                            LCD_Write_Char(0+i,0+j,dofly_code[key]);//依次显示输入字符
  49.                        }
  50.                        if(key == 13)           //如果按下等于号
  51.                        {
  52.                            LCD_Write_Char(0,1+j,dofly_code[key]);//依次显示输入字符
  53.                            switch (key_flag)
  54.                                  {
  55.                                        case 14:
  56.                                            sum = sum_1 + sum_2;
  57.                                            break;
  58.                                        case 10:
  59.                                            sum = sum_1 - sum_2;
  60.                                            break;
  61.                                        case 11:
  62.                                            sum = sum_1 * sum_2;
  63.                                            break;
  64.                                        case 15:
  65.                                            sum = sum_1 / sum_2;
  66.                                            break;
  67.                                  }
  68.                                  sums = sum;                 //检测sum是几位数字
  69.                                  while(sums)
  70.                                        {
  71.                                            n++;
  72.                                            sums/=10;
  73.                                    }
  74.                                        switch (n)           //显示消隐
  75.                                            {
  76.                                                  case 5:
  77.                                                        LCD_Write_Char(n-4,1+j,dofly_code[sum/10000%10]);
  78.                                                  case 4:
  79.                                                        LCD_Write_Char(n-3,1+j,dofly_code[sum/1000%10]);
  80.                                                  case 3:
  81.                                                        LCD_Write_Char(n-2,1+j,dofly_code[sum/100%10]);
  82.                                                  case 2:
  83.                                                        LCD_Write_Char(n-1,1+j,dofly_code[sum/10%10]);
  84.                                                  case 1:
  85.                                                        LCD_Write_Char(n-0,1+j,dofly_code[sum%10]);
  86.                                                        break;
  87.                                                  case 0:
  88.                                                        LCD_Write_Char(1,1+j,dofly_code[0]);
  89.                                            }
  90.                        }
  91.                        if(key == 12)                       //清除错误输入
  92.                        {
  93.                            k++;
  94.                            LCD_Write_Com(0x10);           //对应了光标向左移动一格。整体的画面不滚动
  95.                            LCD_Write_Com(0x04);           //地址指针减一，比如第一个字符写入8FH，则下一个字符会写入8EH；屏幕上的内容不滚动
  96.                            i = i - k-1;
  97.                            if(aa == 0)                           //清除第一个数字
  98.                                  {
  99.                                        sum_1 = sum_1*k/10;
  100.                                  }
  101.                            else if (aa == 1)                 //清除第二个数字
  102.                                  {
  103.                                        sum_2 = sum_2*k/10;
  104.                                  }
  105.                            k = 0;
  106.                            LCD_Write_Com(0x06);           //光标后移
  107.                        }
  108.                        else
  109.                        {
  110.                            LCD_Write_Com(0x06);       //地址指针加一，如第一个字符写入80H，下一个字符会写入81H；内容不会移动
  111.                        }
  112.                        i++;
  113.                  if(i==16)//如果第一行显示满，转到第二行
  114.                    {
  115.                    i=0;j++;
  116.                    if(j==2)//如果2行都显示满，清屏后重新从第一行显示
  117.                    {
  118.                        j=0;
  119.                    }
  120.              }
  121.        }
  122.        }
  123. }
复制代码

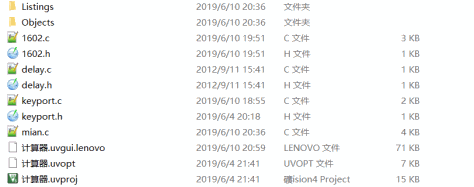

所有资料51hei提供下载:
计算器.zip(51.82 KB, 下载次数: 62)
作者: kudelinshaowudi   时间: 2021-5-26 21:28
定义字符的数字如何加减乘除?
作者: 红鱼   时间: 2024-2-28 16:40
感谢分享，提供了重要思路。
