基于ESP32手势切换天气相册的制作附程序

[复制链接]

电梯直达

楼主

ID:228147发表于 2023-3-6 16:27|只看该作者|只看大图回帖奖励

硬件部分

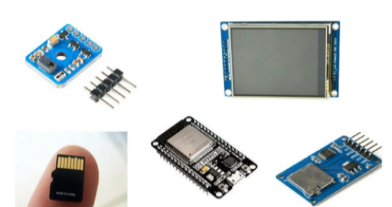

一块ESP32开发板、一块TFT显示屏（驱动ILI9341、不用触摸、尺寸自选，用的是240*320，2.8寸）、Micro SD卡读取模块、micro SD卡（我测试的时候2G的挂载成功但是无法读取，最后用的128M的）、PAJ7620手势传感器。

SP32模块作为主控，实现天气信息获取以及将SD卡内图片推送到TFT屏幕上。在连线时，需要注意一点：因为TFT屏幕与SD卡共用一套SPI，所以他们的一些引脚是接在一起的，只需要控制片选引脚即可，PAJ7620使用的是IIC总线(PAJ7620未在图中绘出)，在源码里我注释了接线的引脚。

软件流程

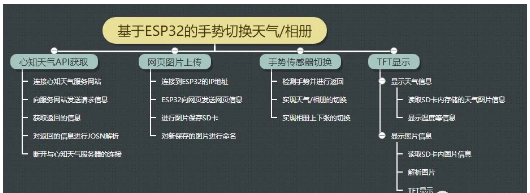

流程根据功能化为4个部分，心知天气API获取，网页图片上传、手势传感器切花，FTF显示，每个部分的相关操作如下图：

硬件部分与软件流程图:

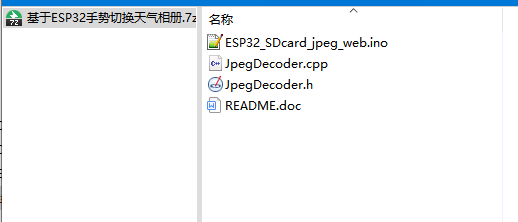

部分代码

#include "JpegDecoder.h"
#include< math.h>
#include< stdlib.h>
using namespace std;
//---------------------------------------------------------------------------
void JpegDecoder::DecoderTable()
{
int val = 0; // type of table ( DC(0,1) or AC(0,1) )
uint8_t buf[16];
fread(&val, 1, 1, fp); // get type of table
fread(buf, 1, 16, fp); // get key value
map<string, uint8_t>& tb = huffman[val];
string keyStr = "";
for (int i = 0; i< 16; i++) // length of key (i.e. i = 2 means key = 000 , 001 , 010 , 011 or ...)
{
int cnt = buf[i]; // number of key, which length is (i+1)
/* alignment */
for (int k = keyStr.length(); k< = i; k++)
{
keyStr += "0";
}
while (cnt > 0)
{
/* value of key */
fread(&val, 1, 1, fp); // read value
//printf("%s = %X\n", keyStr.c_str(), val);
tb.insert(pair<string, uint8_t>(keyStr, val));
/* increment */
int carry = 1; //??λ
for (int k = keyStr.length() - 1; k >= 0; k--)
{
int tmpVal = (keyStr[k] + carry - '0'); //?????λ
carry = tmpVal / 2;
keyStr[k] = tmpVal % 2 + '0'; //??????λ???
}
cnt = cnt - 1;
}
}
}
//-------------------------------------------------------------------------------
Mtx JpegDecoder::InveseSample(Mtx& block, int number)
{
Mtx ret;
int x = (number / 2) * 4;
int y = (number % 2) * 4;
for (int i = 0; i< 8; i += 2)
{
for (int j = 0; j< 8; j += 2)
{
ret[i][j] = ret[i][j + 1] = ret[i + 1][j] = ret[i + 1][j + 1] = block[x + i / 2][y + j / 2];
}
}
return ret;
}
/* @brief ????????? YCbCr -> RGB
*/
void JpegDecoder::ConvertClrSpace(Mtx& Y, Mtx& Cb, Mtx& Cr, Pixel out[8][8])
{
for (int i = 0; i< 8; i++)
{
for (int j = 0; j< 8; j++)
{
out[i][j].R = Y[i][j] + 1.402 * Cr[i][j] + 128;
out[i][j].G = Y[i][j] - 0.34414 * Cb[i][j] - 0.71414 * Cr[i][j] + 128;
out[i][j].B = Y[i][j] + 1.772 * Cb[i][j] + 128;
/* ??? */
if (out[i][j].R > 255) out[i][j].R = 255;
if (out[i][j].G > 255) out[i][j].G = 255;
if (out[i][j].B > 255) out[i][j].B = 255;
/* ??? */
if (out[i][j].R< 0) out[i][j].R = 0;
if (out[i][j].G< 0) out[i][j].G = 0;
if (out[i][j].B< 0) out[i][j].B = 0;
}
}
}
/* @brief ???? ConvertClrSpace(), ?? MCU ?е? YCbCr ??????? RGB ???
*/
void JpegDecoder::Convert()
{
Mtx cb;
Mtx cr;
Pixel out[8][8];
cb = InveseSample(mcu.cbMtx, 0);
cr = InveseSample(mcu.crMtx, 0);
ConvertClrSpace(mcu.yMtx[0], cb, cr, out);
WriteToRGBBuffer(out, 0);
cb = InveseSample(mcu.cbMtx, 1);
cr = InveseSample(mcu.crMtx, 1);
ConvertClrSpace(mcu.yMtx[1], cb, cr, out);
WriteToRGBBuffer(out, 1);
cb = InveseSample(mcu.cbMtx, 2);
cr = InveseSample(mcu.crMtx, 2);
ConvertClrSpace(mcu.yMtx[2], cb, cr, out);
WriteToRGBBuffer(out, 2);
//for (int i = 0; i< 8; i++)
//{
// for (int j = 0; j< 8; j++)
// {
// cr[i][j] = mcu.crMtx[4 + i % 4][4 + j % 4];
// cb[i][j] = mcu.cbMtx[4 + i % 4][4 + i % 4];
// }
//}
cb = InveseSample(mcu.cbMtx, 3);
cr = InveseSample(mcu.crMtx, 3);
ConvertClrSpace(mcu.yMtx[3], cb, cr, out);
WriteToRGBBuffer(out, 3);
}
/* @brief ??????????RGB????д??RGB????????
@buf: ????????
@blockIndex: ?????? ????Χ: 00, 01, 10, 11 (??????) -> 0??1??2??3 (?????)
*/
void JpegDecoder::WriteToRGBBuffer(Pixel buf[8][8], int blockIndex)
{
int xOffset = 8 * (blockIndex& 0x02) >> 1; // binary: blockIndex& 10 (i.e. if blockIndex = 01 => blockIndex& 0x02 == 01& 10 => xOffset = 0 * 8 = 0 )
int yOffset = 8 * (blockIndex& 0x01); // binary: blockIndex& 01 (i.e. if blockIndex = 01 => blockIndex& 0x01 == 01& 01 => yOffset = 1 * 8 = 8 )
for (int i = 0; i< 8; i++)
{
for (int j = 0; j< 8; j++)
{
rgbBuf[xOffset + i][yOffset + j].R = buf[i][j].R;
rgbBuf[xOffset + i][yOffset + j].G = buf[i][j].G;
rgbBuf[xOffset + i][yOffset + j].B = buf[i][j].B;
}
}
}
//-------------------------------------------------------------------------------
/* @brief ??????? MCU
*/
void JpegDecoder::DecoderNextMCU()
{
/* Y ?????? ??? 0??? */
DecoderMtx(mcu.yMtx[0], 0, quantY, dcY);
DecoderMtx(mcu.yMtx[1], 0, quantY, dcY);
DecoderMtx(mcu.yMtx[2], 0, quantY, dcY);
DecoderMtx(mcu.yMtx[3], 0, quantY, dcY);
/* Cb, Cr ?????? ??? 1??? */
DecoderMtx(mcu.cbMtx, 1, quantC, dcCr);
DecoderMtx(mcu.crMtx, 1, quantC, dcCb);
}
//--------------------------------------------------------------------
/* @brief ??????? 8 x 8 ??????
*/
void JpegDecoder::DecoderMtx(Mtx& block, int table, uint8_t *quant, int& dc)
{
if (endOfDecoder) return; // ???????
// reset matrix
for (int i = 0; i< 64; i++) block[i / 8][i % 8] = 0x0;
// decoder DC of matrix
int length = FindKeyValue(table);
int value = GetRealValue(length);
dc += value; // DC
block[0][0] = dc;
// decoder AC of matrix, table = table + 16 => table = 0x00 (DC-0)-> table = 0x10 (AC-0)
for (int i = 1; i< 64; i++)
{
length = FindKeyValue(table + 16);
if (length == 0x0) break; // ????????
value = GetRealValue(length& 0xf); // ??? 4λ??????????
i += (length >> 4); // ??? 4λ???г????
block[i / 8][i % 8] = value; // AC
}
// ??????
for (int i = 0; i< 64; i++) block[i / 8][i % 8] *= quant[i];
// ?? Zig-Zag ????
UnZigZag(block);
// ?????????任
IDCT(block);
}
/* @brief ?????????????????????Ч?
*/
int JpegDecoder::FindKeyValue(int table)
{
map<string, uint8_t>& huf = huffman[table];
string keyStr = "";
while (huf.find(keyStr) == huf.end())
{
//printf("%s\n", keyStr.c_str());
keyStr += (NextBit() + '0'); // char of 0 or 1
}
//printf("%s = %d\n", keyStr.c_str(), huf[keyStr]);
return huf[keyStr];
}
/* ????????????????????? */
int JpegDecoder::GetRealValue(int length)
{
int retVal = 0;
for (int i = 0; i< length; i++)
{
retVal = (retVal<< 1) + NextBit();
}
return (retVal >= pow(2, length - 1) ? retVal : retVal - pow(2, length) + 1);
}
//---------------------------------------------------------------------
/* @brief ????
*/
BitmapImage& JpegDecoder::Decoder()
{
/* decoder quant table */
DecoderQuant();
/* decoder width and height of image */
DecoderSize();
/* decoder huffman table of DC and AC */
DecoderHuffman();
/* decoder data */
ToStartOfData();
/* decoder MCU */
int totalBlock = xNumberOfBlock * yNumberOfBlock;
while (!endOfDecoder&& (idxOfBlock< totalBlock))
{
DecoderNextMCU();
Convert();
WirteBlock(rgbBuf);
}
/* end of decoder */
return img;
}
